Pointr Graph Editor

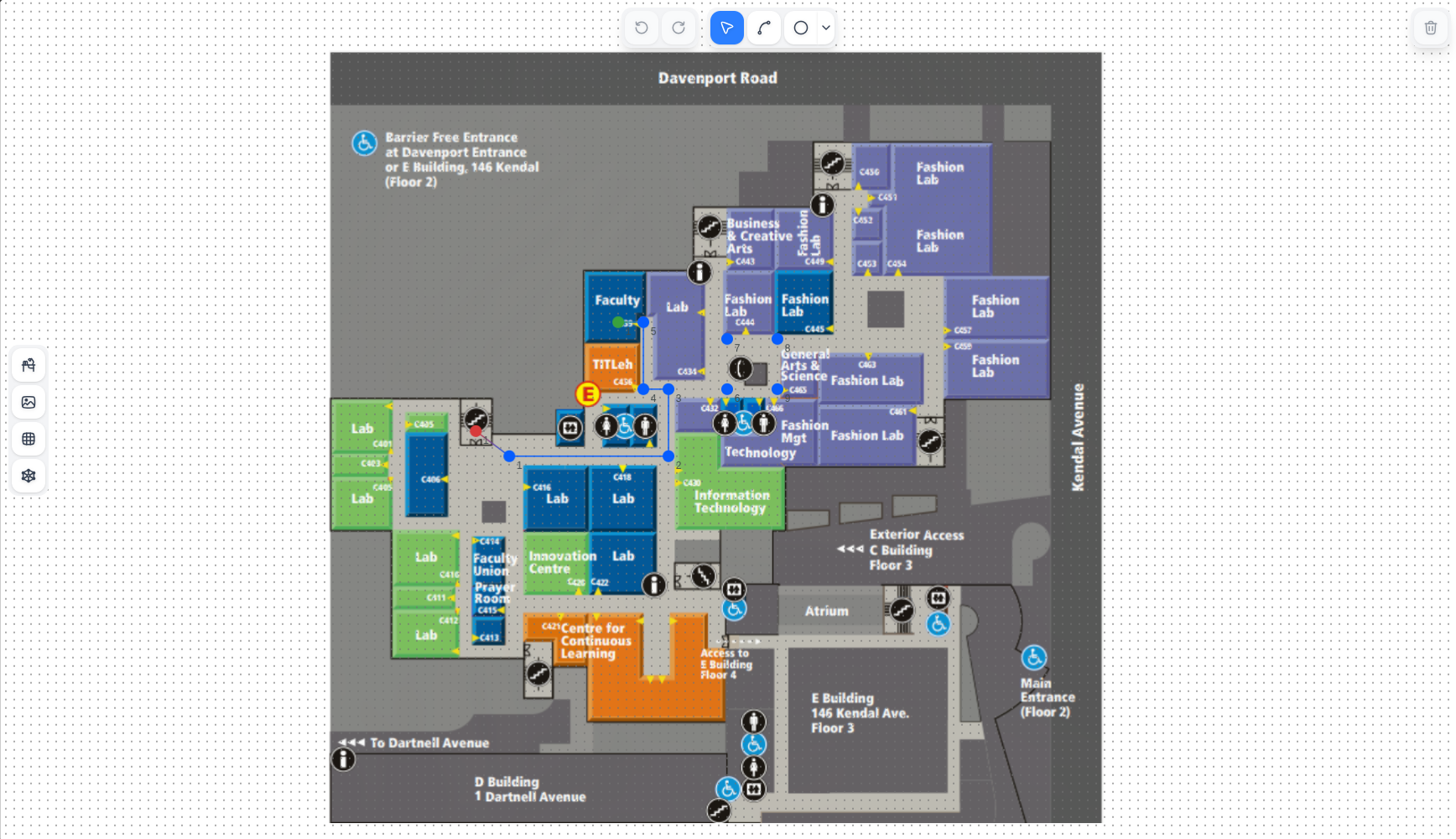

A web-based graph editor for Pointr, an open-source indoor navigation AR project. Drop in an indoor map, draw a path graph on top of it, and export to Neo4j.

Built with React, TypeScript, and Vite.

Quick start

npm install
npm run dev

| Script | Description | |--------|-------------| | npm run dev | Start dev server | | npm run build | Production build | | npm run test | Run Jest tests | | npm run lint | ESLint |

Architecture

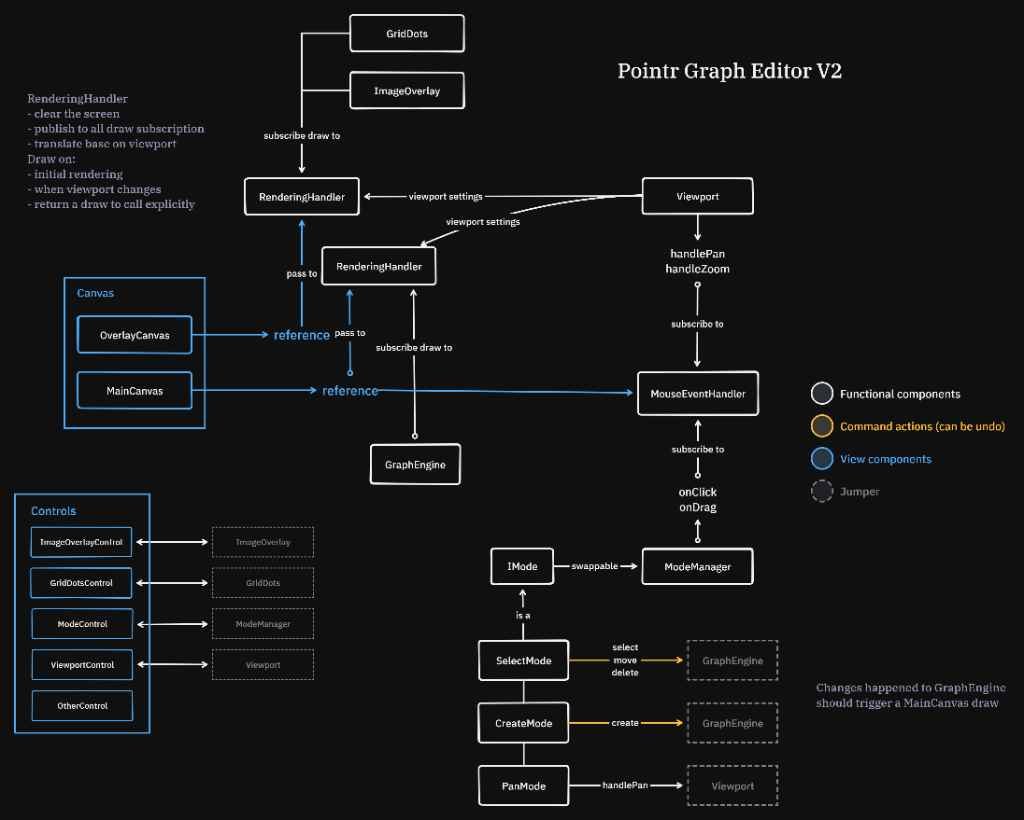

High-level design for Pointr Graph Editor V2. Legend:

• White — functional components (rendering, viewport, modes, graph engine)
• Blue — view components (canvas layers, controls)
• Yellow — undoable command actions (select, move, delete, create)
• Dashed — jumpers (references to components defined elsewhere)

Rendering

Each canvas layer owns a RenderingHandler that clears the screen, applies viewport transforms, and publishes draw calls to subscribers (GraphEngine, GridDots, ImageOverlay, etc.). Graph changes trigger a redraw on MainCanvas.

Input & modes

Viewport handles pan/zoom. MouseEventHandler forwards click and drag events to ModeManager, which swaps IMode implementations:

| Mode | Action | |------|--------| | Select | select, move, delete nodes/edges | | Create | place new nodes | | Pan | pan the viewport |

Mutations go through the Command pattern for undo/redo.

Project layout

src/
├── components/   # Canvas layers & UI controls
├── core/commands/# Undoable mutations (ICommand)
├── domain/       # Graph entities & interaction modes
├── hooks/        # Rendering bus, event bus, attachments
├── stores/       # Zustand state (graph, canvas, commands)
└── services/     # Persistence & Neo4j export

Tech stack

React 19 · TypeScript · Vite · Zustand · Tailwind CSS v4 · Framer Motion · Jest
